Transmig® VS 212 Stealth Wirefeeder

CRESTMEAD, QLD

Input Voltage: 15-100 VDC
Maximum Input Current: 8 Amps
Wire Speed Range: 1.27-20.32 m/min
Wire Size Range: 0.6-2.0 mm
Maximum Spool Size: 20kg
Feed Rolls: 2 gear driven
Welding Current 425A at 60% Duty Cycle
Welding Gun Inlet Size (Std.) 15.9mm nominal, Tweco® #4
Dimensions: 289 x 239 x 541mm
Weight: 20 kg
Approvals IEC 60974-1,NEMA EW-3

Please note drive roll kits and torch are optional.

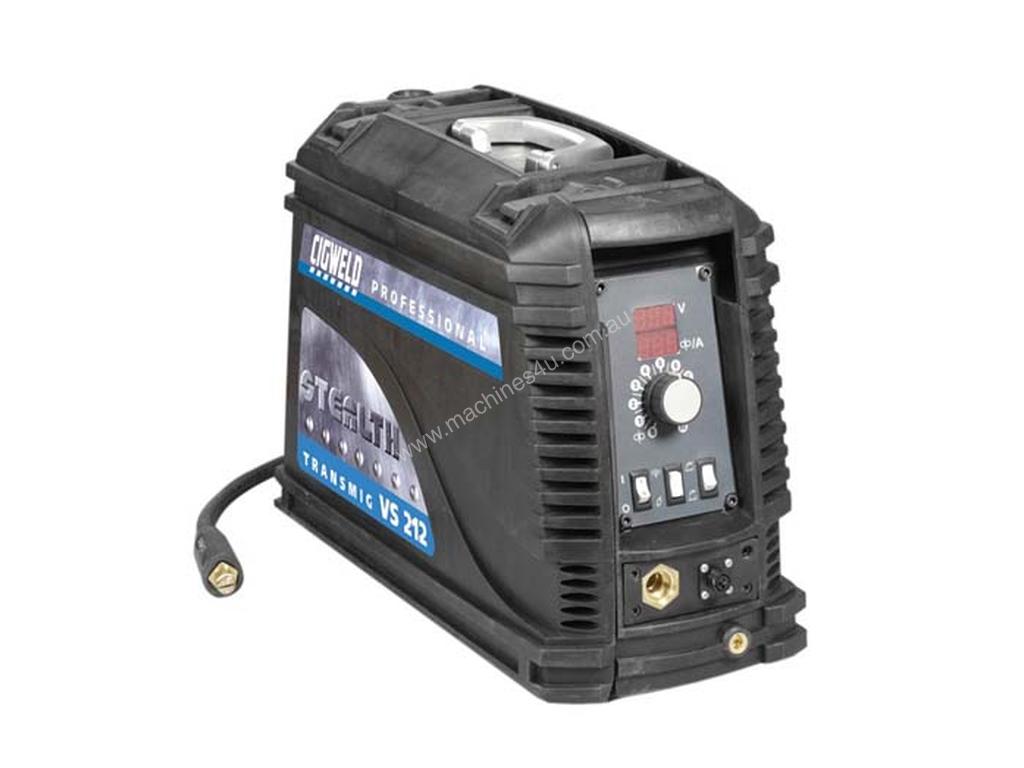

The Transmig® VS 212 Stealth wirefeeder is a purpose built,
portable, powerful CC/CV, solid state controlled voltage sensing
wire feeder. Its rugged injection molded, fibreglass reinforced,
flame retardant, polypropylene case represents the latest in high
strength, super tough, light weight materials.

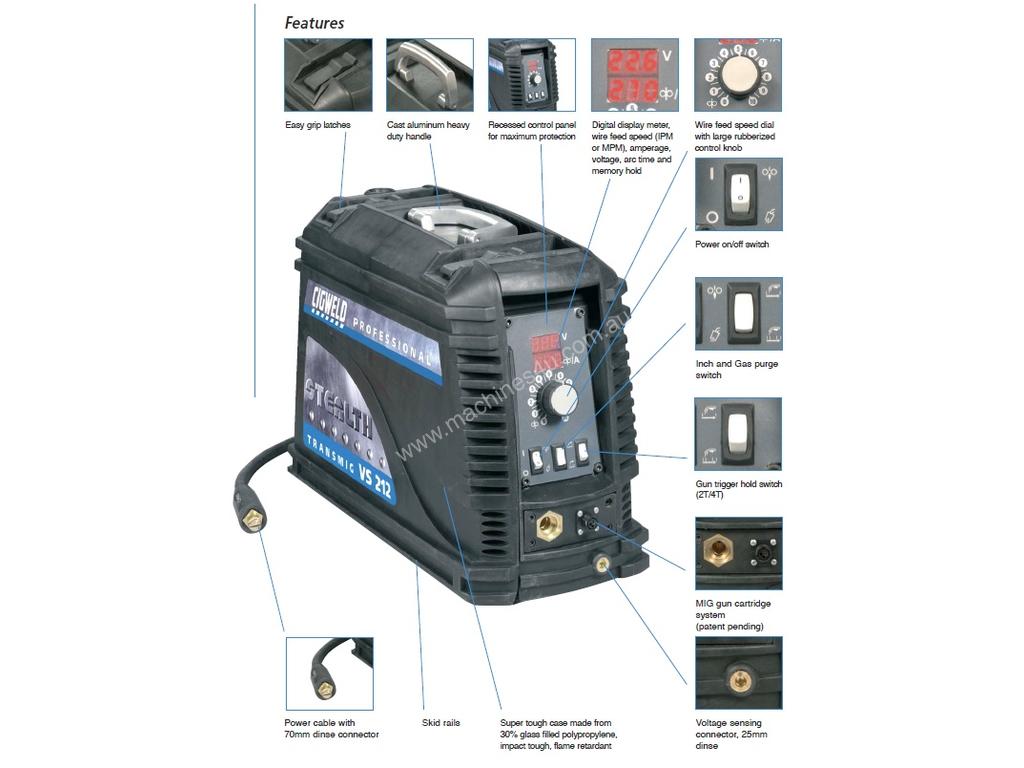

A recessed control panel protects the controls which include a
power switch, inch and purge switch, gun trigger hold (2T/4T)
and the digital display for monitoring wire speed, amps, volts,
arc time and meter hold function. A lifting eye, MIG gun holder,
removable voltage sensing lead and recessed carrying handle
are just some of the refined external features of the Stealth
wirefeeder.

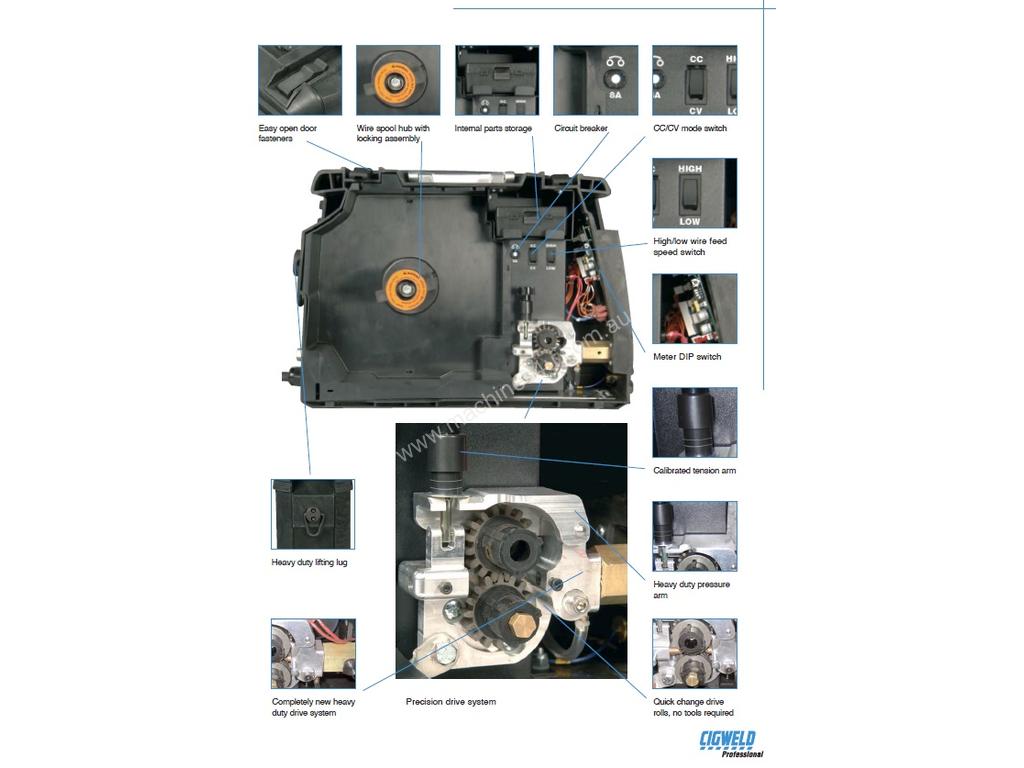

But the features that truly set this machine apart are the
aluminium cast machined feed head and tension arm combined
with quick change drive rolls (geared top and bottom) and the
unique (patent pending) changeable integrated MIG gun
cartridge system.
This new system allows the operator to connect any style MIG
gun to the wire feeder without the use of external adapters
which can break off or restrict wire feeding. Finally all printed
circuit boards are potted and sealed to be environmentally
toughened from metallic dust, dirt and moisture. Costly down
time will be a thing of the past when the Stealth wirefeeder is
on site.
